DIY Drip Water Exchange System. Empty
PostSubject: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/3/2011, 8:50 pm

Well let me start by saying this was an easy project that took roughly less then one hour to complete and a little longer to fine tune.

So as with most my projects I had a purpose in building this system...

I have a bunch of 10 gallon fry tanks setup that house each spawn once they are free swimming. This means that while they are very small there are over a hundred or more fry in the tank at any given time. As anyone who has ever went through the process of feeding fresh brine shrimp knows... it can be a very dirty process.

The first week or two after the fry start to free swim they are fed 4-5 times daily then 3 times a day and this has the effect of fouling the water very quickly. My daily water change was nearly 90% and sometimes more then once. Now in the spirit of keeping healthy fish this is fine with me but I felt that in-between the times that I had available to do these water changes the water sat too long.

I came up with a drip style water exchange system that is really easy to implement. This system is setup to exchange 5 gallons a day. As you might imagine this does not mean that only old water is removed some new and old are removed at any given time but over the course of the week it should add up to nearly a 96% water change out. That on top of all the other now smaller (less then 50%) water changes put the overall water exchange well above 100%.

I have had this up and running for a few days now and noted much improved water quality overall with less overall floating debris between cleanings. I believe it is providing a better environment for the fry and helps me out on the time I have to care for so many fish.

As promised here are the pictures and some short explanations to go with them.

Gather all the tools:
Drill with bit to fit size line you want to use(air line in my case)
Paint cup (bought at home depot for 2.50 a box.
Tubing
Zip ties
Small power head (sized to meet your needs)
DIY Drip Water Exchange System. 05032010
DIY Drip Water Exchange System. 05032011

Drill a hole in the bottom of the paint box. This box will act as both a drain and overflow.

DIY Drip Water Exchange System. 05032012

Cut your tubing on a tapper to aid in feeding it through the hole you just drilled

DIY Drip Water Exchange System. 05032013

Tube should fit very snugly in the box you can leak test it at this time...
Next is very important. This tube you just installed is your drain tube. The height of this tube will determine the water level in the tank. I later cut the tapered end off and set the proper height of the tube for the water level I wanted to maintain. This tube MUST be higher then the inlet tube in this cause because the box doubles as an overflow.

DIY Drip Water Exchange System. 05032014

DIY Drip Water Exchange System. 05032023

Connect your power head up to a feed line. This feed line will either run directly to the tank you wish to install the system on or a splitter or valve to control flow. In this system Flow in = flow out. The power head will pull water from whatever water holding tank you want. In my case I have a 75 gallon tank setup for nothing put water stabilizing. I apply any water treatment to this tank BEFORE it is pumped into all the others. Works great and really cuts back on the need to add chemicals to remove chlorine ect...

DIY Drip Water Exchange System. 05032015

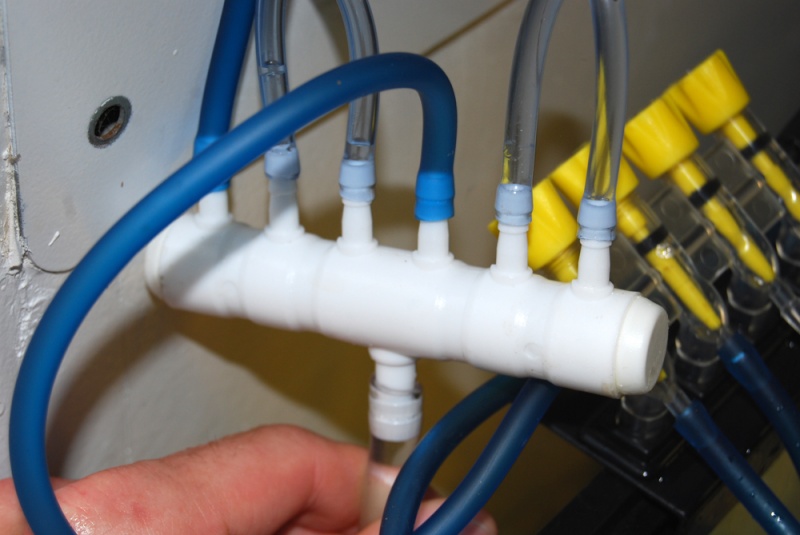

This plastic splitter for airlines is used to down size the power head tubing to airline size.

DIY Drip Water Exchange System. 05032016

Standard plastic valve controls are used to set the flow rate of inlet water(keep in mind this is a SMALL system)

DIY Drip Water Exchange System. 05032017

In order for me to get a 5 gallon a day overflow I had to set a very low drip on the inlet.

DIY Drip Water Exchange System. 05032018

Take a small piece of tubing and run it from the handle that sets in the water to the overflow area. Remember earlier we set the drain tube higher in the box? The outlet tube from the tank will set below this tube in water thus creating our constant siphon. To start the siphon simply hold the small tube under water and fill it then pinch off the end and place both pinched ends underwater. The water will flow from the higher level tank water into the lower level box. Once it reaches the height of the drain tube it will begin to drain. Since your inlet tube keep putting in water this overflow will continue.

DIY Drip Water Exchange System. 05032019

DIY Drip Water Exchange System. 05032020

In my case all the overflow boxes exit into my brine shrimp factory water bath. This water bath is simply a plastic flower box that I fill with water and throw in a heat to maintain an 82-84 degree temp to hatch the shrimp quickly. I drilled another hole from this box and drain this water into a bucket for now later it will be an outside drain.

DIY Drip Water Exchange System. 05032021

My latest batch of happy fry. This is only a small amount of them the rest are all around the tank!

DIY Drip Water Exchange System. 05032022

Be sure to check the overflow box for any fry. It is good at catching them but you still need to check for them! I find maybe one a day in the smallest tank. The rest of them are strong enough to swim away.

Hope this all makes sense! It is simply and overflow system but instead of a sump it is an old out fresh in system!
rock on
Back to top Go down
plantedtankdude
Lieutenant Colonel
Lieutenant Colonel
plantedtankdude


Posts : 1227
Location : Plano, texas
Favorite Fish: : all of them along with mermaids and me I'm a Pisces.

DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/3/2011, 9:59 pm

I wonder if this would work for making a d.i.y. auto aquatic plant fert. drip thing.
Back to top Go down
MarkM
Lieutenant Colonel
Lieutenant Colonel
MarkM


Posts : 1324
Location : Prairieville, LA
Favorite Fish: : If it swims and has fins and gills, I like it.

DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/3/2011, 10:15 pm

Nice write up! Well done.
Back to top Go down
CajunGator
Moderator
Moderator
CajunGator


Posts : 5845
Location : New Iberia, Louisiana
Favorite Fish: : Cichlids, WC Syn Petricola, Shellies, Festae, Mbu Puffers, Koi Angels, ABN, Piranha, Mermaids

DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/3/2011, 10:37 pm

WOW very interesting!

DIY Drip Water Exchange System. 102652
Back to top Go down
strikingthematch
Captain
Captain
strikingthematch


Posts : 1118
Location : Virginia Beach, VA
Favorite Fish: : Discus, Stingrays, Arowana, Rams, and Angels

DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/4/2011, 2:36 pm

Thanks all!


[I wonder if this would work for making a d.i.y. auto aquatic plant fert. drip thing.]

I don't see why not just have to dilute the ferts enough and figure out what amount would drip for a daily/weekly period.
Back to top Go down
Madmax0r
Staff Sergeant
Staff Sergeant
Madmax0r


Posts : 147
Location : Austin Texas
Favorite Fish: : Texas Cichlids (mainly Herichthys cyanoguttatus), Rock bass, and other native Texas fish



DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/10/2011, 9:38 pm

I like the handy paint cup siphon, keeps from needing to drill 10 gallon tanks.... which would almost be ridiculous. cool setup
Back to top Go down
strikingthematch
Captain
Captain
strikingthematch


Posts : 1118
Location : Virginia Beach, VA
Favorite Fish: : Discus, Stingrays, Arowana, Rams, and Angels

DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/11/2011, 7:28 am

That's for sure. I originally wanted to use specimen containers but when I found these paint cups for 2.50 a cup... compared to the 5+ for a container the deal was sealed. Now the containers would look much more official and sit better on the tank but this gets the job done!
Back to top Go down
Madmax0r
Staff Sergeant
Staff Sergeant
Madmax0r


Posts : 147
Location : Austin Texas
Favorite Fish: : Texas Cichlids (mainly Herichthys cyanoguttatus), Rock bass, and other native Texas fish



DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/11/2011, 6:17 pm

Have you ever had one of those loose siphon?
Back to top Go down
strikingthematch
Captain
Captain
strikingthematch


Posts : 1118
Location : Virginia Beach, VA
Favorite Fish: : Discus, Stingrays, Arowana, Rams, and Angels

DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/11/2011, 6:31 pm

Not yet but you do have to make sure that it either restarts or that you restart it after a water change.
Back to top Go down
Madmax0r
Staff Sergeant
Staff Sergeant
Madmax0r


Posts : 147
Location : Austin Texas
Favorite Fish: : Texas Cichlids (mainly Herichthys cyanoguttatus), Rock bass, and other native Texas fish



DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/11/2011, 7:36 pm

yea, true


I dunno if you have ever flooded your house but it sucks pretty good if you get a problem in a sump system... lol

ad-least if your siphon fails its only at a drip rate
Back to top Go down
strikingthematch
Captain
Captain
strikingthematch


Posts : 1118
Location : Virginia Beach, VA
Favorite Fish: : Discus, Stingrays, Arowana, Rams, and Angels

DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/11/2011, 8:35 pm

Yeah 5 gallons over 24 hours is not horrible but I guess if I set it up on some larger tanks I want to 10 gallons a day could hurt. The way I figure is that the tank only are left alone for 8-10 hours a day and that is if the wife does not notice something so... I feel pretty safe.

Thankfully my sump is power fail safe in its current setup though it might burn up the pump if the siphon would not restart but better then a flooded house haha.
Back to top Go down
Madmax0r
Staff Sergeant
Staff Sergeant
Madmax0r


Posts : 147
Location : Austin Texas
Favorite Fish: : Texas Cichlids (mainly Herichthys cyanoguttatus), Rock bass, and other native Texas fish



DIY Drip Water Exchange System. Empty
PostSubject: Re: DIY Drip Water Exchange System.   DIY Drip Water Exchange System. Icon_minitime5/11/2011, 9:00 pm

yea,

I usually just keep the water level in my sump tank low enough so it can take the extra water from the other tanks in a power failure, I periodically kill the power to make sure I didn't overlook a problem point.

eventually I would like to have an emergency overflow in the sump that goes outside. then I could do a drip system no problem

Back to top Go down
